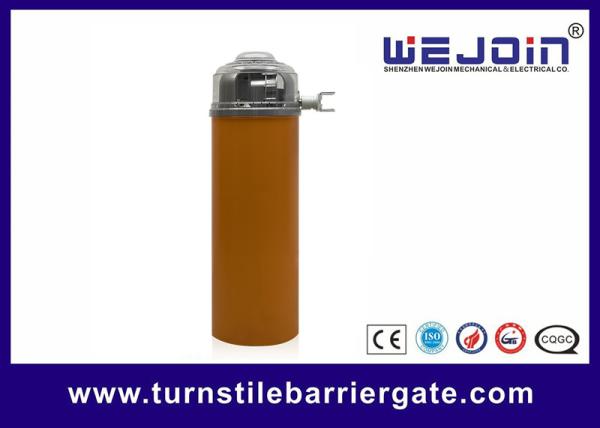

Running Speed 0.3 Seconds MAX car parking gate automated DC24V Variable Frequency

Name: Running Speed 03 Seconds MAX car parking gate automated DC24V Variable Frequency
Brand: WEJOIN
Price: 1 USD

Brand Name : WEJOIN

Model Number : SCB02

Certification : CE ISO SGS

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000 sets/month

Delivery Time : 12 working days after payment received

Packaging Details : carton

Boom Type : Straight round boom

Housing color : gold

Application : parking lot

Speed : 0.3 seconds MAX

MTBF : 8,000,000 times

Arm material : Aluminum alloy

Contact Now

Running Speed 0.3 seconds MAX DC24V Variable-Frequency Barrier Gate

Parking Barrier Common Malfunctions and Solutions

Malfunction Phenomenon	Possible Causes	Solution
The LED digital tube of the slave motor displays IdLE	The slave motor sensor plug is not plugged in or the wire is loose	Check the slave motor sensor plug
The LED digital tube of the slave motor displays IdLE	Slave motor sensor failure	Replace the slave motor
LED Prompt: motor sensor is not detected	The main motor sensor plug is not plugged in or the wire is loose	Check the main motor senor plug, and plug well
LED Prompt: motor sensor is not detected	Main motor sensor failure	Replace the main motor
The control board is not powered on	The fuse is blown	Replace the fuse with the same specification
The control board is not powered on	The power supply has no out put	Check the power supply or power circuit

Barrier Gate Technical Data

1. Power supply input voltage: AC110±10%, AC220V±10%

2. Controller input voltage: DC24V±10%, 10A

3. Motor power: up and down power 180W; horizontal power 60W

4. Relative Humidity: 30%~80%, No condensation

5. Distance of remote control: L≥30M

6. Running Speed: 0.3 seconds MAX

7. MTBF: 8,000,000 times

Boom Barrier Brief Introduction

1. Breaking the normal operation mode of the barrier gate, the starting point adopts the same-direction driving operation mode with the vehicle passing, to realize the ultra-high-speed and ultra-intensive operation.

2. The boom will be reset after hit and removed, which effectively protects the boom and the mechanism, alarm against abnormal lifting boom.

3. Be able to stop at any position in three-dimensional space, no longer limited height problem.

4. Double protection, one drive failure will not affect the other drive, and the barrier gate can still operate in another space;
5. No spring design, no longer worry about configuring springs and springs broken.
6. Traffic lights on the top cover to better indicate the passage of vehicles.
7. The running direction can be easily changed in two steps.
